48V DC Power Integration Module

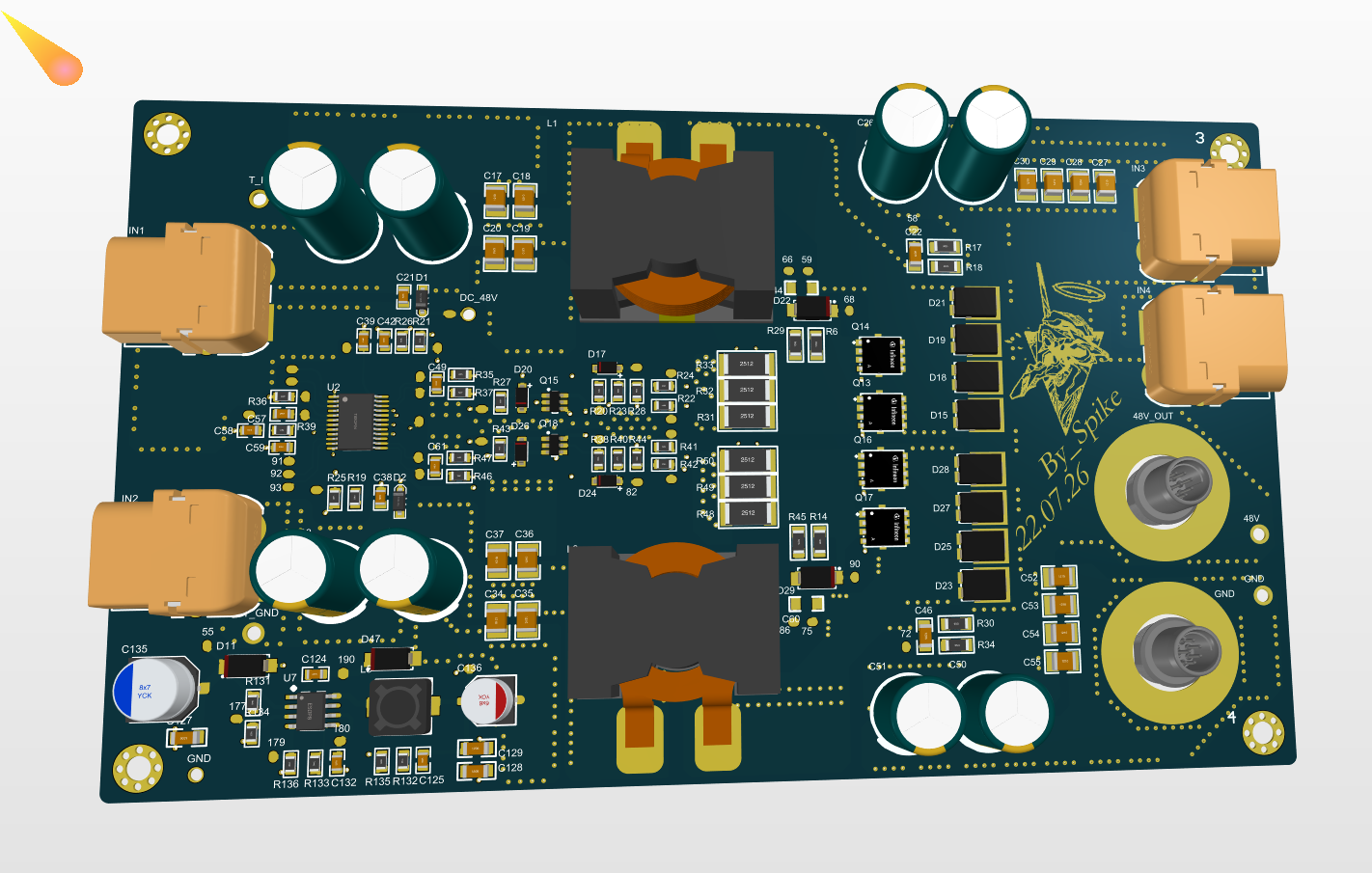

48V High-Power DC-DC Boost Converter Module

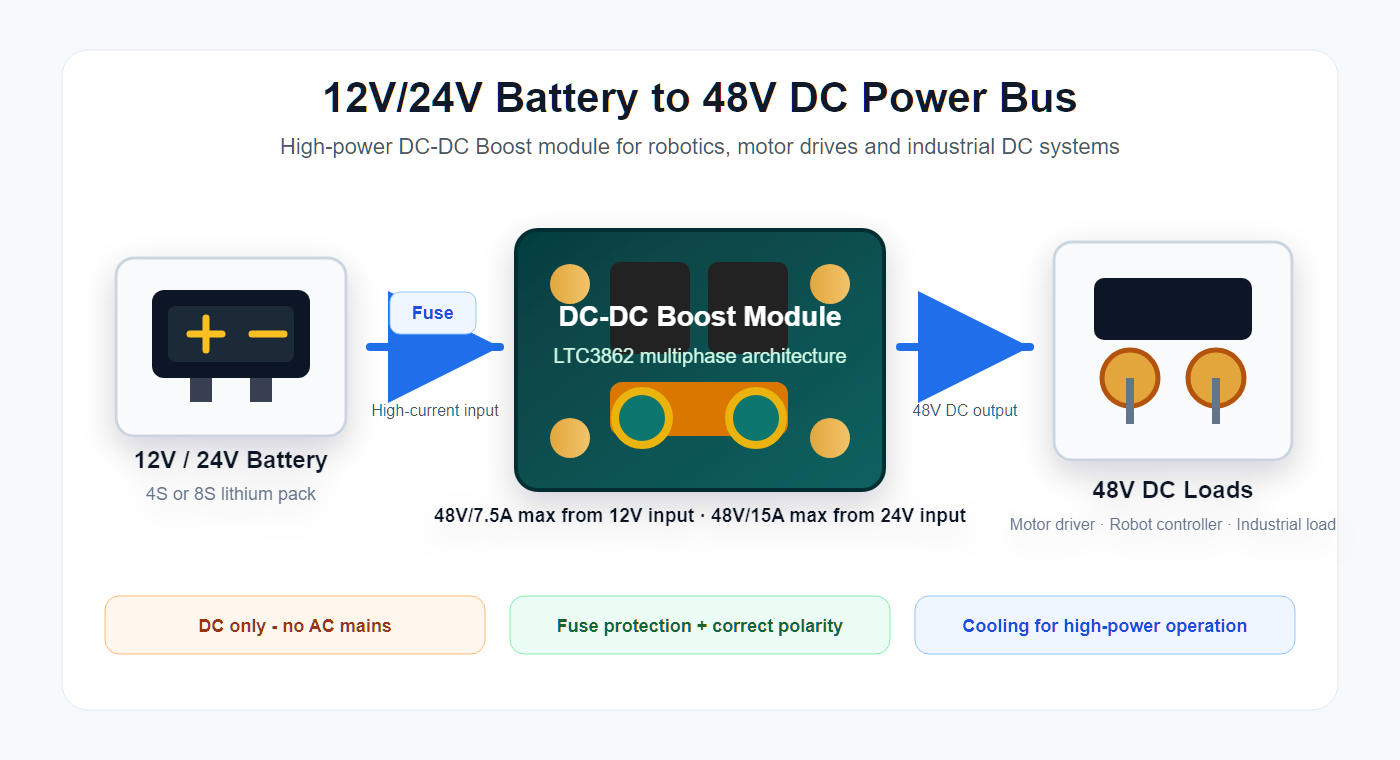

Convert 12V or 24V battery input into a regulated 48V DC bus for robotics, motor drives, mobile platforms, industrial equipment and battery-powered systems.
12V / 24V Battery Input
Supports 12V~16.8V and 24V~33.6V DC input ranges for common battery-powered platforms.
Regulated 48V DC Output
Designed for 48V DC bus systems, BLDC motor drivers, robot platforms and industrial loads.
Up to 720W Output
Up to 48V/7.5A from the 12V input range or 48V/15A from the 24V input range.
Key Features
- Multiphase Boost architecture: based on the LTC3862EFE-2 controller to reduce input ripple and improve high-power stability.
- Protection functions: reverse-polarity protection, TVS transient protection, soft start, over-current detection and output regulation.
- Integration-ready design: suitable for engineers, equipment builders and high-power DC system integration.
Typical Applications
- Robotics, AGV and mobile platform power systems
- 12V/24V battery to 48V DC bus conversion
- 48V BLDC motor drivers, stepper drivers and servo drives
- Industrial DC power modules and equipment retrofits
- Energy storage, backup power and lab test platforms
